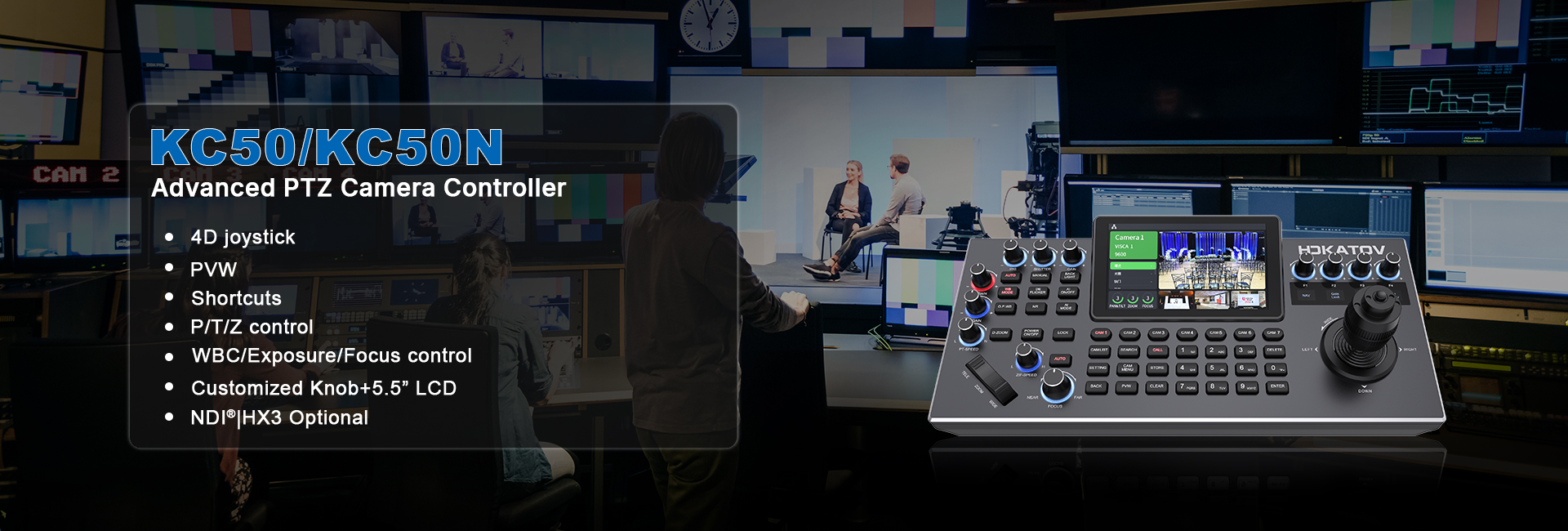

Four-dimensional precision joystick + 3D scale knob + Ergonomic Zoom key
Adjust key camera parameters such as white balance, exposure, focus, and zoom
Built-in 5.5” full HD LCD display
Supports real-time preview of the current camera feed via streaming protocols (NDI®|HX2 and RTSP); streaming supports up to 4Kp30 ultra-high-definition video streams and camera preset position preview
Support HDMI output for large-screen display
Outputs the current camera feed to a monitor for real-time preview via the HDMI interface, supporting up to 4Kp30 ultra-high-definition resolution
Supports 7 camera selection shortcuts
Allows quick setup of 7 camera selection shortcuts based on your needs, with support storing information for up to 1000 cameras
Brand-new UI operation interface and WEB control backend
The new UI operation interface supports remote customization of functions and parameter configurations via the WEB backend, as well as device upgrades by web page
Remote PTZ camera menu operation
Quickly open the current camera menu, and achieve function operation in combination with joystick and preview screen or screen display, supporting the activation or deactivation of camera AI functions and switching AI tracking modes.
White and red dual-colour backlit silicone buttons
High-quality silicone with excellent tactile feedback, supporting white and red backlight for smooth operation in low-light environments. It supports the input of letters and common characters, allows for camera naming, address editing, and other operations
Supports one-key lock button
A one-key lock button effectively reduces misoperation
Multiple control protocols, suitable for most scenarios
Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI® (optional) control protocols, with automatic protocol recognition
Rich interfaces, multiple connection methods
Equipped with external RS-232, RS422/485 serial ports, and RJ45 network interfaces. The network interface supports POE functionality, reducing wiring hassles
External Tally interface
Support up to 7 tally channels
Support customized knobs Function
Supports F1, F2, F3, F4 knob custom camera’s image effect adjustment functions, with corresponding LCD screens displaying knob functions below each knob, allowing for optimal operation function settings according to user needs
Remote control of PTZ camera AI functions
Quickly activate or deactivate the AI function of the current camera, and switch the camera AI mode (this feature requires our AI function-supported cameras)
