| Name | Specification |
| Product Name | CAT6a S/FTP Network Cable (Low-latency crystal head) |
| Model | W400-xxM-A |
| Brand | Beetek |

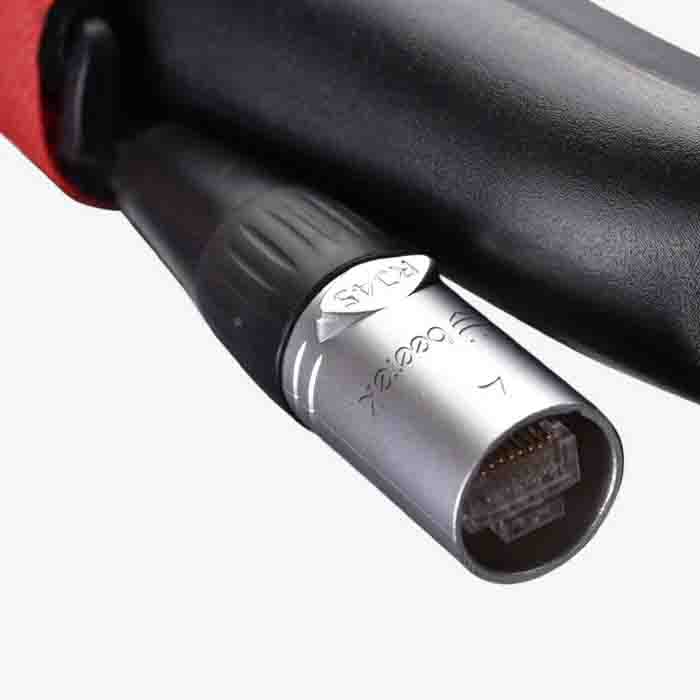

| Connector Type | RJ45 S/FTP |
| Cable Type | CAT6a SFTP |
| Environmental Information | RoHS 2.0 Compliant |
| Size | 56.4 * 17.4 * 13.8 mm |

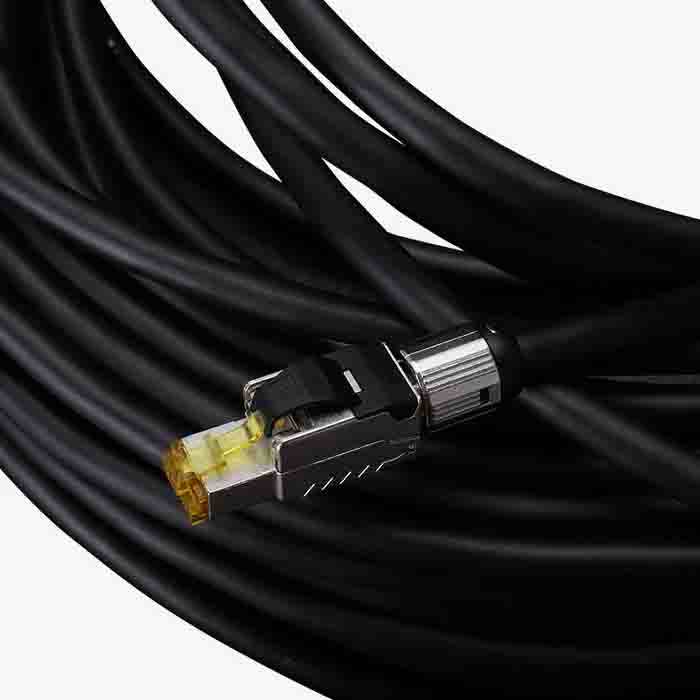

| RJ45 Connector | Low-latency crystal head (with built-in quick-connect circuit board) |
| Gold Plate Thickness | 50U |
| Latch Tab | Integrated break-resistant tab |
| Structure | Conductor + Insulation + Aluminum Foil + Ground Wire + Braid + Jacket |
| Conductor Gauge | 23AWG |
| Conductor Size | 0.26±0.008mm*8 |
| Conductor Material | Single strand oxygen free copper |
| Insulation Material | Foam-skin PE |
| Insulation Color Code | 1P: Bule & White/Blue; 2P: Orange & White/Orange; 3P: Green & White/Green; 4P: Brown & White/Brown |
| Core Wire Direction | s |
| Core Wire Lay Length | <30mm |
| Cable Direction | s |
| Cable Lay Length | ≦120mm |
| Aluminum Foil | Aluminum foil pair shielded |
| Ground Wire | 7 x 0.16mm Multi-strand oxygen free copper（26AWG） |
| Braid Material | 128 x 0.12mm tinned copper braid shield |
| Shielding Rate | 100% |
| Jacket Material | TPE |
| Jacket Outer Diameter | 8.0±0.20mm |
| Jacket Color | Black |
| Conductor Resistance | ＜68.4Ω/km at 20℃ |
| Insulation Resistance | ＞5000MΩ at 20℃ |
| Impedance | 100Ω±15Ω |
| Withstand Voltage | 1000V DC/1min;No Breakdown |
| Delay Difference | ≤30ns/100m（1-125MHz） |
| Frequency | 500Mhz |
| Testing | PASS FLUKE |
| Insulation Elongation | ≥300% |
| Insulation Tensile | ≥16 Mpa |
| Jacket Elongation | ≥100% |
| Jacket Tensile | ≥12.5 Mpa |
| Maximum Relative Mutual Coupling Capacitance | 5.6 nF/100m |
| Maximum Capacitance Unbalance | 330pF/100m |
| Allowable Bending Radius | 10D (*D is cable outer diameter) |
| Operating Temperature | -20~80℃ |
| Operating Voltage | 60V |
