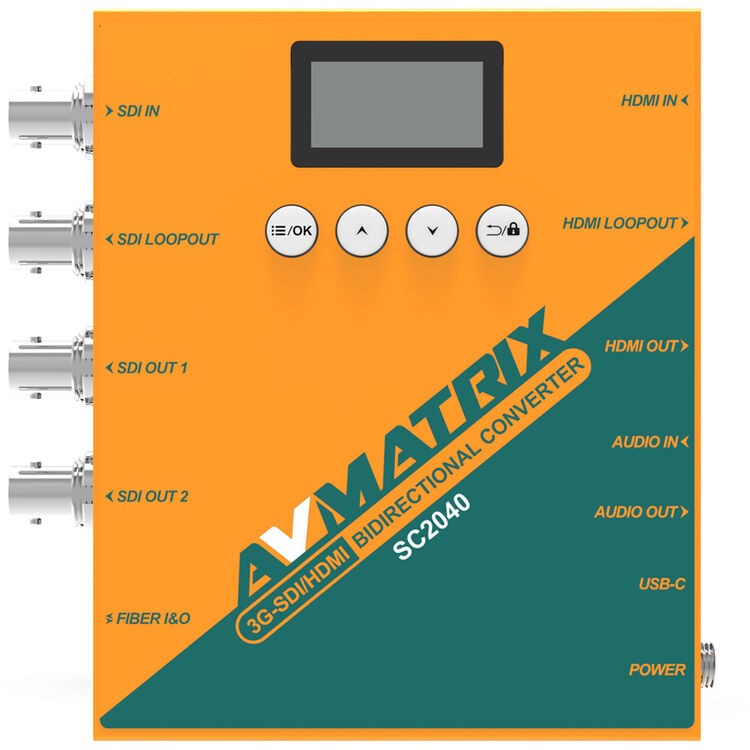

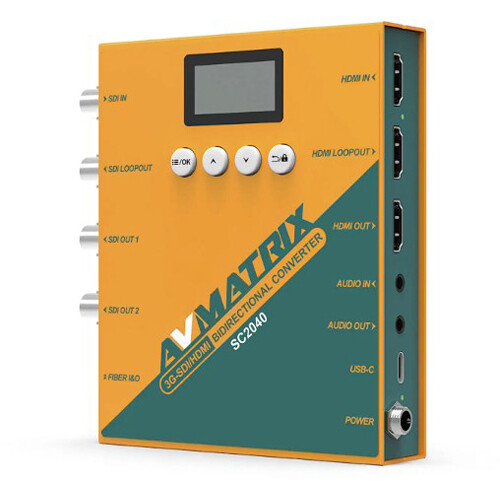

AVMATRIX SC2040
The 3G-SDI/HDMI Bidirectional Converter from AVMATRIX is an ultracompact, bidirectional 3G-SDI / HDMI signal converter in a robust metal housing designed for conversion functions in AV, broadcast, and live event productions. This rugged unit provides multiple format conversion, scaling, and frame rate conversion modes with audio embedding/de-embedding, test tones/pattern generators, and image orientation control.
Additional Details
- Bidirectional 3G-SDI<—>HDMI conversion
- Multiple conversion operation modes
- Upscaling/downscaling
- Frame rate conversion
- SFP slot for optional fiber module for transceiver transmission up to 12.4 miles
- Audio embedding and de-embedding via 3.5mm analog audio I/O
- Built-in test pattern generator with 23 patterns
- Built-in audio tone generator with left/right test tones and routing diagnosis
- Flexible image orientation control with horizontal/vertical image flipping
- Status display with intuitive operation
- Dual power supply option via USB-C and coaxial DC inputs
Industry Applications
- Broadcast
- Live events
- House of worship
- Education
- Healthcare
Application
HDMI to SDI
SDI TO HDMI
ANALOG AUDIO IN
ANALOG AUDIO OUT
CROSS CONVERTER
FIBER IN
FIBER OUT
